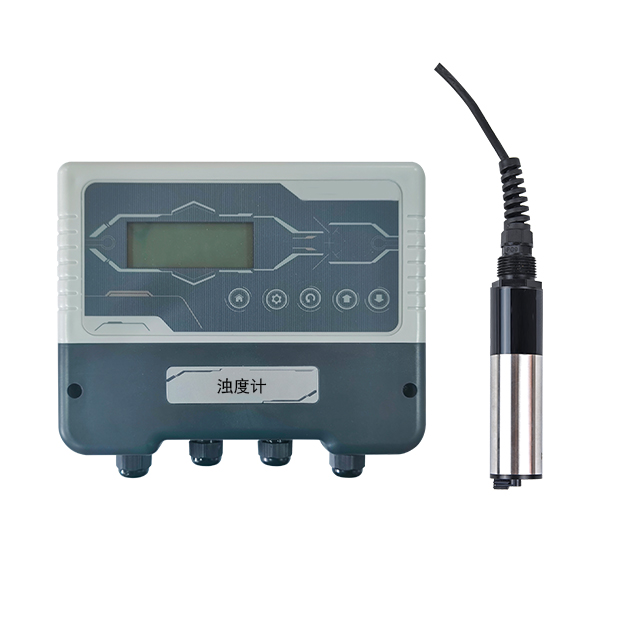

The turbidity meter photoelectric sensor consists of a light source, lens, photoelectric element, etc. When light passes through the measured liquid sample, scattered light in a 90 ° direction with the incident light acts on the photoelectric element, generating an electrical signal that varies with turbidity. This signal is sent to the signal processor together with the reference signal. The signal processor, with integrated circuits as its core, forms a stable electronic circuit that amplifies, filters, performs operations, compensates, and other processes on the signal, making it linearly related to the turbidity of the measured liquid sample throughout the entire measurement range.
1. The menu structure is easy to operate and displayed in both Chinese and English;
2. Multi parameter display on the same screen;
3. Bubble suppression system eliminates bubbles;
4. Convenient calibration, fast verification, and online calibration;
5. Historical curve and digital recorder function;
6. Multiple signal outputs and alarm functions;
7. Good repeatability, unaffected by sample flow rate and pressure.
model | YK-ZDYG-2088Y/T |
Range | 0-5NTU, 0-10NTU, 0-20NTU, 0-100NTU, 0-200NTU, 0-200NTU are specified when ordering |
Accuracy | <FS (full scale) ± 2% |
Reproducibility | <FS±1% |
resolving power | 0.001NTU/0.01NTU/0.1NTU |
Sampling quantity | 200ml continuous |
Adapt to temperature | 4～40℃ |
relative humidity | <70%RH |
supply voltage | 200～240V，50HZ |
power waste | <25W |
Display partial external dimensions | 146 (length) × 146 (width) × 138 (depth) |
Hole size | 138×138 mm |
Sensor size | 340 (length) x 280 (width) x 160 (depth) mm |
Water tank size | 180 (length) x 160 (width) x 80 (depth) mm |
Weight | 15kg |
Regular use | Mostly used in situations where there are fewer impurities in the water quality |
application area | Tap water, power plants, sewage treatment plants, pharmaceutical factories, hospitals |
